Tool breakage is a problem for many industries – the eromobil® is the solution. Be it the production of parts for machinery, equipment or plant construction or in the automotive industry – tool breakage and broken tools which remain lodged in high-value workpieces present a problem for companies and businesses.
The eromobil® is a mobile erosion device which removes broken tap drills, spiral drills etc. within minutes and without damaging the workpiece. Your professional solution for minimising disruptions in production and preventing rejects.
HOW DOES IT WORK?

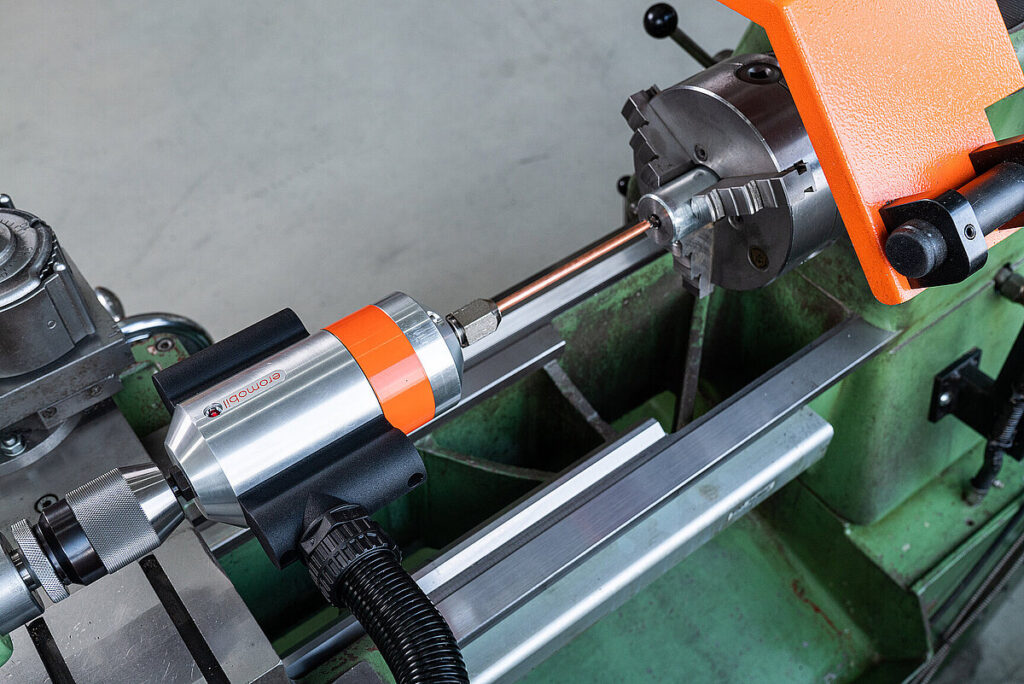

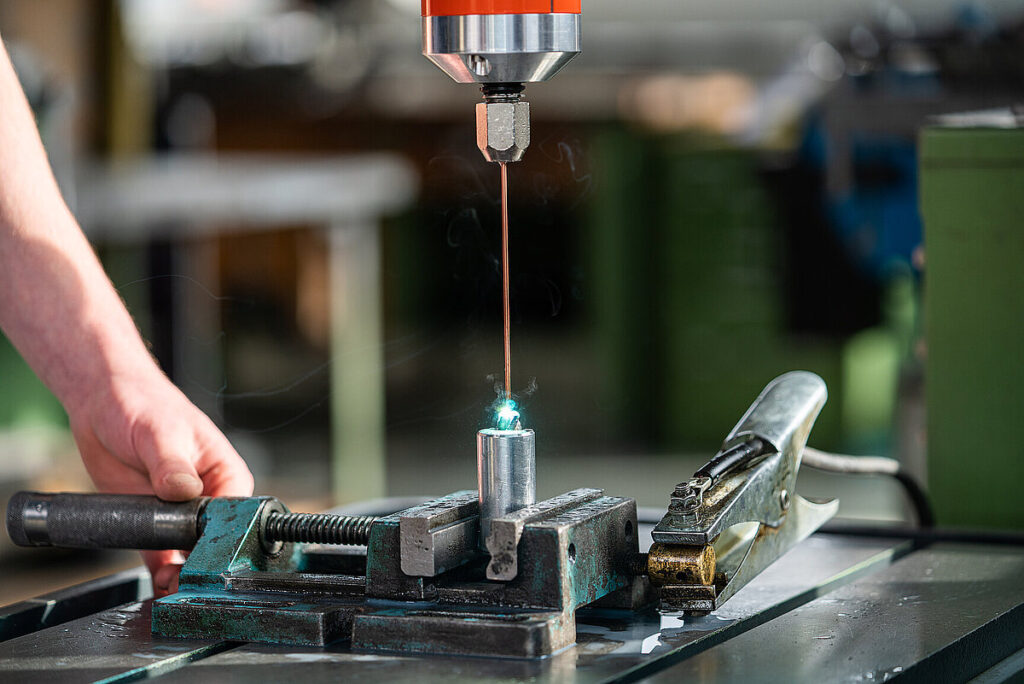

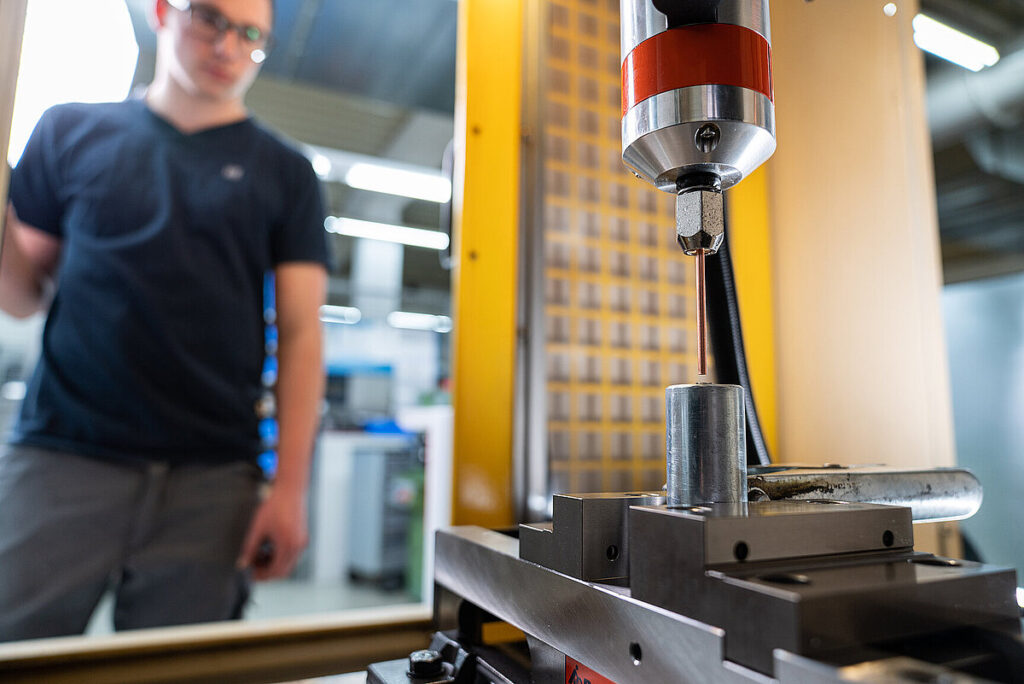

The hollow copper electrode is clamped in the oscillating head. This is smaller in diameter than the broken tool. During the erosion process, the core of the broken tool is disintegrated. This releases the cutting edges of the tool which can be easily removed. The electrode does not come into contact with the workpiece so the thread remains undamaged. The drilling emulsion usually used for operation is used as cooling fluid.
Technical Specifications
Choose between the two available models of the eromobil® – depending on the required power or which thread sizes need to be eroded.
| er230s | er400t | |
| Thread Sizes | M2 to M20 | M2 to M40 |
| Connection | 220/230 V AC – 50Hz – 16A | 400V DC – 50Hz – 15A |
| Power | 3.6kVA | 6.0kVA |
IncluIncluded as standard: Generator in trolley, oscillating head, supply hose, earth cable, coolant pump, coolant tank, 1x open-ended spanner WAF19 and WAF24 respectively, 10 anti-splash bags and operating instructions.
Quick and convenient with everything at hand

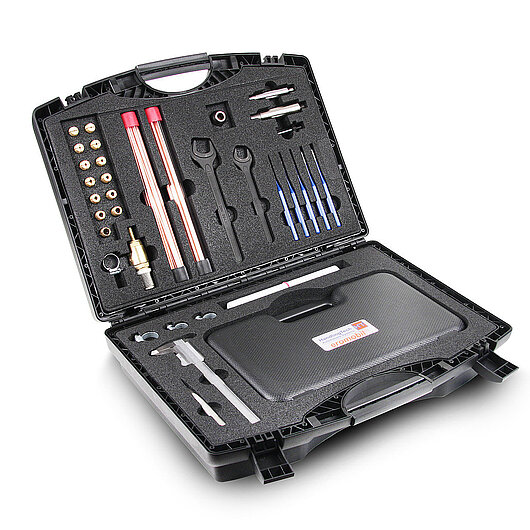

The new eromobil® starter case contains the optimum equipment in terms of the materials and tools you need when using your eromobil®. The robust hard shell case, with its intelligent inner workings, accommodates the tools and materials perfectly, and stores them in a well-organised and safe way. And even if you already have an eromobil®, the eromobil® starter case still offers numerous benefits.
The Starter Case COMPLETE contains:
WiFi inspection camera: Ideal for illuminating places that are difficult to access.
1 set of hollow copper electrodes ø 1-10 mm.
1 set of collets ø 1-10 mm.
1 set of drift punches ø 2-6 mm.
1 vibration head retainer MK-2, MK-3.
1 clamping nut.
10 vibration head splash protection bags.
1 precision vernier calliper.
1 coolant pump suction basket complete with non-return valve and threaded coupling.
2 open-ended spanners, WAF 19, WAF 24 mm.
1 set of tweezers: for removing the residue after the erosion process.
4 hose clamps 9 mm.
1 straight shank retainer ø12 mm.
Starter Case SMART without WiFi inspection camera.
Individual Optional Accessories
Of course you can assemble the accessories individually and exactly according to your needs. Be it the magnetic stand or the deep hole inspection light, the original eromobil accessories guarantee even more convenience during operation.
Magnetic stand
WiFi inspection camera
Oscillating head socket
Punches

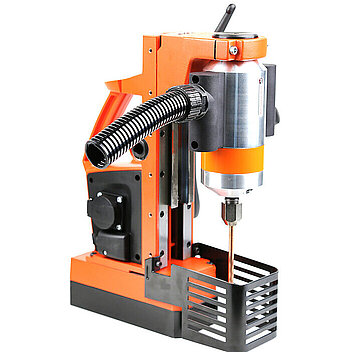

For erosion on large magnetisable workpieces. With holding bracket and special flange to hold the oscillating head. Mobile carriage, upper section sliding and pivoting.

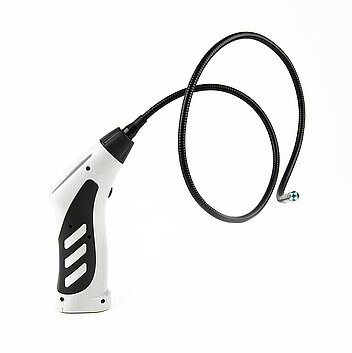

With a length of 80 mm, the camera’s neck is ideal for illuminating holes that are difficult to access or are deep after erosion. A free app can be used to transfer the view directly to your smartphone, tablet or PC.

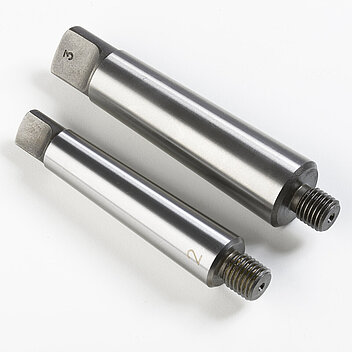

MK-2/MK-3, right in the spindle sleeve.

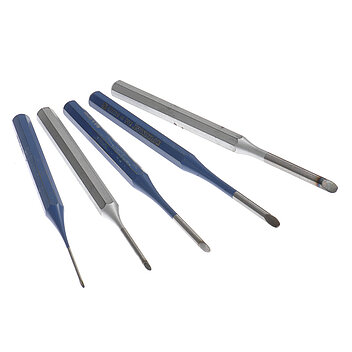

For easy removal of the tool residues after erosion. Available as a set with diameters of 2.0 / 3.0 / 4.0 / 5.0 / 6.0 mm.
